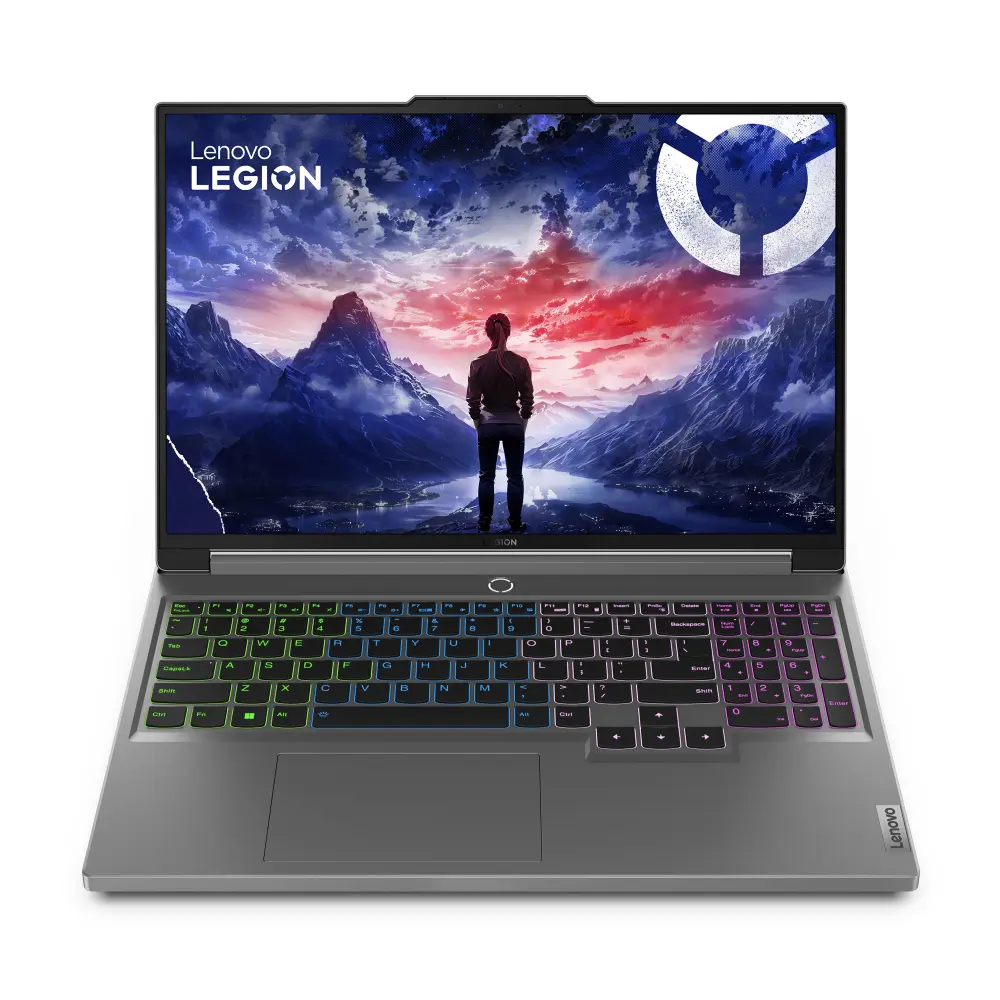

LAPTOP LENOVO LEGION CORE I7 13650HX 512GB SSD 16GB DDR5 RTX 4060 16" WQXGA TEC/ESP W11H GRIS LEGION 5 16IRX9 83DG00N5LM GARANTIA CON FABRICANTE
Documents
Internal Reference:
198157149229
Model: 83DG00N5LM
| Intel Core i7-13650HX, 14C (6P + 8E) / 20T, P-core 2.6 / 4.9GHz, E-core 1.9 / 3.6GHz, 24MB | |
| 1x 16GB SO-DIMM DDR5-4800 | |
| 512GB SSD M.2 2242 PCIe 4.0x4 NVMe | |
| NVIDIA GeForce RTX 4060 8GB GDDR6, Boost Clock 2370MHz, TGP 140W, 233 AI TOPS | |
| Windows 11 Home Single Language, Spanish | |
| 1-year, Courier or Carry-in |
| PERFORMANCE | |
| Processor | Intel® Core i7-13650HX, 14C (6P + 8E) / 20T, P-core 2.6 / 4.9GHz, E-core 1.9 / 3.6GHz, 24MB |
| AI PC Category | AI-Powered Gaming PC |
| Graphics | NVIDIA® GeForce RTX™ 4060 8GB GDDR6, Boost Clock 2370MHz, TGP 140W, 233 AI TOPS |
| Chipset | Intel® HM770 Chipset |
| Memory | 1x 16GB SO-DIMM DDR5-4800 |
| Memory Slots | Two DDR5 SO-DIMM slots, dual-channel capable |
| Max Memory | Up to 64GB DDR5-4800 |
| Storage | 512GB SSD M.2 2242 PCIe® 4.0x4 NVMe® |
| Storage Slot | Two M.2 2280 PCIe® 4.0 x4 slots |
| Max Storage Support | Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 1TB • M.2 2280 SSD up to 1TB |
| Optical | None |
| Card Reader | microSD Card Reader |
| Audio Chip | High Definition (HD) Audio, Realtek® ALC3287 codec |
| Speakers | Stereo speakers, 2W x2, optimized with Nahimic Audio |
| Microphone | 2x, Array |
| Camera | FHD 1080p with E-shutter |
| Battery | 80Wh |
| Power Adapter | 230W Slim Tip (3-pin) |
| Special Features | AI Chip: LA1 |
| DESIGN | |
| Display | 16" WQXGA (2560x1600) IPS 350nits Anti-glare, 100% sRGB, 165Hz, Dolby Vision®, G-SYNC®, Low Blue Light |
| Touchscreen | None |
| Screen-to-Body Ratio | 93% AAR (active area ratio) |
| Color Calibration | Factory Color Calibration |
| Pen | Pen Not Supported |
| Keyboard | 4-Zone RGB Backlit, Spanish (LA) |
| Touchpad | Buttonless Mylar® surface multi-touch touchpad, 75 x 120 mm (2.95 x 4.72 inches) |
| Dimensions (WxDxH) | 359.7 x 262.3 x 19.7-25.2 mm (14.16 x 10.33 x 0.78-0.99 inches) |
| Weight | Around 2.36 kg (5.2 lbs) |
| Case Color | Luna Grey |
| Case Material | Aluminium (Top), PC-ABS (Bottom) |
| Surface Treatment | Aluminium Stamping (Anodized with Sandblasting) |
| SOFTWARE | |
| Operating System | Windows® 11 Home Single Language, Spanish |
| Bundled Software | Office Trial |
| CONNECTIVITY | |
| WLAN + Bluetooth | Wi-Fi® 6E, 802.11ax 2x2 + BT5.2 |
| WWAN | Non-WWAN |
| Ethernet | 100/1000M (RJ-45) |
| Standard Ports |
|
| SECURITY & PRIVACY | |
| Security Chip | Firmware TPM 2.0 Enabled |
| Fingerprint Reader | None |
| Other Security | E-shutter |
| SERVICE | |
| Base Warranty | 1-year, Courier or Carry-in |
| Included Upgrade | None |
| ACCESSORIES | |
| Bundled Accessories | Lenovo® Legion™ Gaming Speed Mouse Pad M |
| CERTIFICATIONS | |
| Green Certifications |
|
| Other Certifications | TÜV Rheinland® Low Blue Light (Hardware Solution) |
| MODEL INFORMATION | |
| Model | 83DG00N5LM |
| Machine Type | 83DG |
| Region | LA |
| Country/Region | LA Group |
| TopSeller | Yes |
| EAN / UPC / JAN | 198157149229 |
